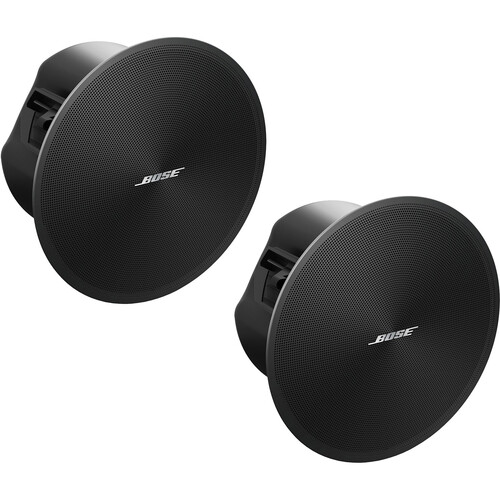

Bose Professional DesignMax DM3C Passive Ceiling Mount 2-Way Coaxial Loudspeakers (Pair)

KSh94,000.00

Bose Professional DM3C Specs

Key Specs
Active/Passive
Passive
Number of Included Speakers
2
Speaker Configuration
2-Way
Power Handling
120 W Peak
60 W Program
30 W RMS
Constant Voltage / Transformer Taps
70 V
25 / 12 / 6 / 3 W or 8 Ohms Bypass
100 V
25 / 12 / 6 W or 8 Ohms Bypass

Impedance
8 Ohms
HF Driver
1x 0.75″ / 19.05 mm Dome Tweeter
LF Driver
1x 3.25″ / 82.55 mm Woofer
Frequency Range
75 Hz to 20 kHz -10 dB
Color
Black
Speaker
Active/Passive
Passive
Number of Included Speakers
2
Speaker Configuration
2-Way
Power Handling
120 W Peak
60 W Program
30 W RMS
Constant Voltage / Transformer Taps
70 V
25 / 12 / 6 / 3 W or 8 Ohms Bypass
100 V
25 / 12 / 6 W or 8 Ohms Bypass
Impedance
8 Ohms
Enclosure Type
Sealed
Drivers
HF Driver
1x 0.75″ / 19.05 mm Dome Tweeter
LF Driver
1x 3.25″ / 82.55 mm Woofer
Magnet
HF:
Neodymium
Performance
Frequency Range
75 Hz to 20 kHz -10 dB
Frequency Response
85 Hz to 19 kHz -3 dB
Maximum SPL
98 dB (Continuous)
Sensitivity
83 dB
Coverage Angle
135° (Conical)
Connectivity
Inputs/Outputs
Block 6-Pin Speaker Input/Thru
Maximum Wire Gauge
14 AWG / 2.5 mm
Physical
Environmental Resistance
No
Operating Conditions
32 to 122°F / 0 to 50°C
Color
Black
Mounting
In-Ceiling
Cutout Size
8.2″ / 20.8 cm
Mount Surface Thickness
Up to 1.5″ / 3.8 cm
Construction Material
Plastic, Stainless Steel Grille, Steel
Dimensions
10 x 6″ / 254 x 152.4 mm
Weight
5.9 lb / 2.7 kg
Packaging Info
Package Weight
19.47 lb
Box Dimensions (LxWxH)
23.6 x 13.1 x 11.1″
Categories: ,


Description

Bose Pro DM3C Overview

Offering rich lows and clear, intelligible highs, the black Bose Professional DesignMax DM3C is a pair of 2-way coaxial loudspeakers that utilizes a dispersion alignment system to provide phase accurate audio and a consistent listening experience. The speakers include plenum-rated backcans, tile bridges, and front-access audio wiring that make installation and troubleshooting easier.

The DM3C is part of the DesignMax DS series speakers, which consistently share a tonal quality, allowing you to mix and match between 12 sets of speakers without any noticeable sonic difference. With its elegant form factor and minimum-bezel grilles, the DM3C offers a modern aesthetics and practical features such as removable logos.

Key Features
  • Deliver clear highs and surprising low-end for their size with coaxial two-way drivers—no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
  • Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
  • Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
  • Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
  • Install easily with industry-standard accessories—includes Euroblock connectors, plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
  • Combine DesignMax models to complete any design, big or small—12 loudspeakers to mix and match, from 2″, low-profile models to 8″, high-SPL compression-driver loudspeakers and outdoor-rated options
